Features
Double rod with double force for higher anti-bending and anti-twisted strength ensured durable life and perfect directional characteristic.

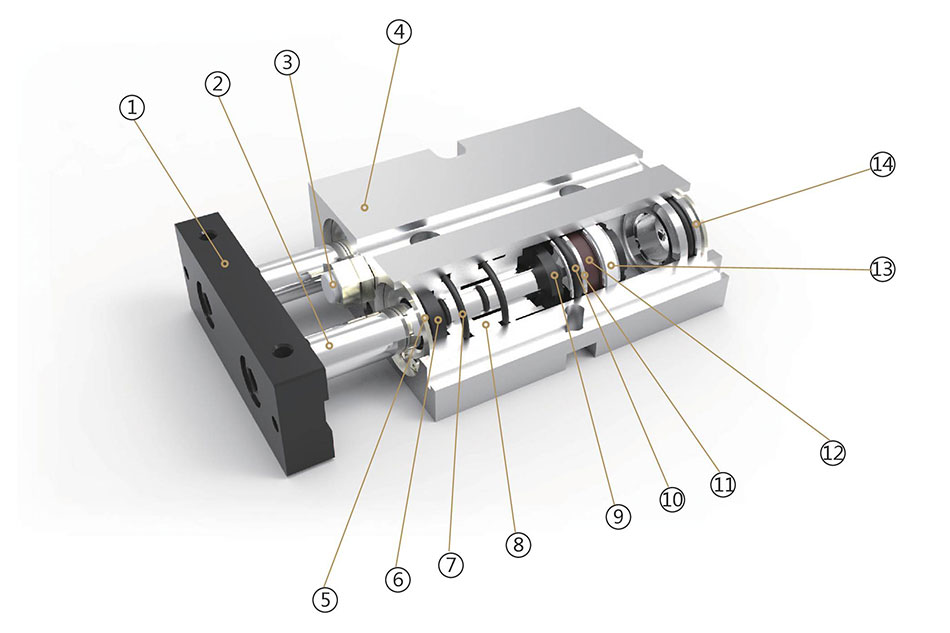

Internal Structure
Parts
Number | Name | Number | Name |
1 | Fixing plate | 8 | Front cover |
2 | Piston rod | 9 | Anti-collision washer |
3 | Anti-collision head | 10 | Piston seal |
4 | Cylinder body | 11 | Piston |
5 | Circlips for holes | 12 | Magnet |
6 | Shaft seal | 13 | Anti-friction ring |
7 | O ring | 14 | Back cover |

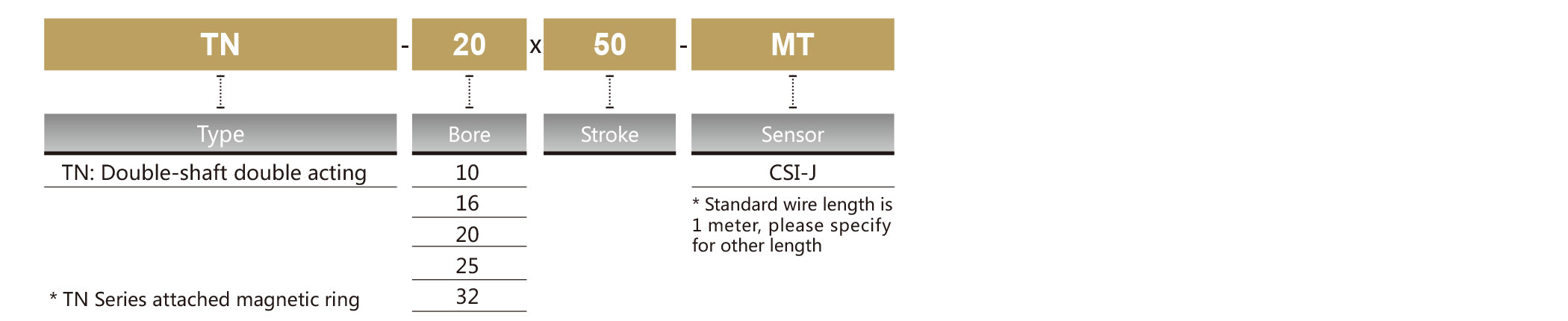

Ordering Code

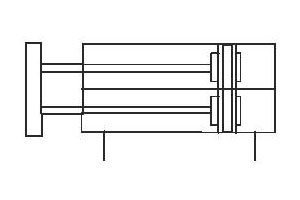

Symbol
Specification
Bore (mm) | 10 | 16 | 20 | 25 | 32 |
Working Medium | Air | ||||
Operation | Double Acting | ||||
Operation Pressure Range | 0.1~0.9 MPa | ||||
Ensure Pressure Resistance | 1.35 MPa | ||||
Operation Temperature Range | 0~70 ℃ | ||||
Operation Speed Range | 100~500 mm/s | ||||
Adjustable Stroke | -10~0 mm | ||||
Cushion | Not Available | Cushion Gasket | |||
Pres ion Of Non-rotating | 0.4° | 0.3° | |||
Port Size | M5 x 0.8 | PT 1/8″ | |||
Stroke
Bore (mm) | Standard Stroke | Max. Stroke | Allowable Stroke |
10 | 10 20 30 40 50 60 70 | 70 | 100 |
16 | 10 20 30 40 50 60 70 80 90 100 125 150 | 150 | 200 |
20 | 10 20 30 40 50 60 70 80 90 100 125 150 | 150 | 200 |
25 | 10 20 30 40 50 60 70 80 90 100 125 150 | 150 | 200 |
32 | 10 20 30 40 50 60 70 80 90 100 125 150 | 150 | 200 |

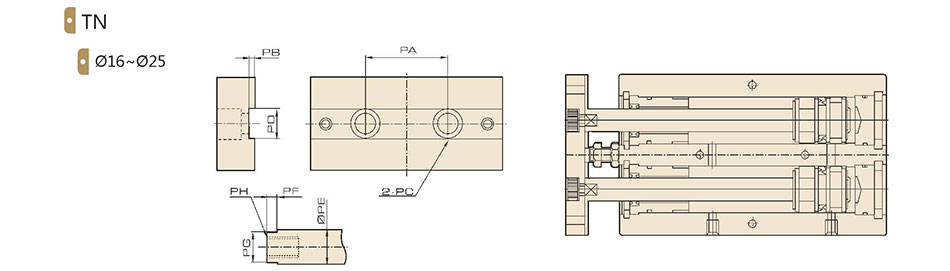

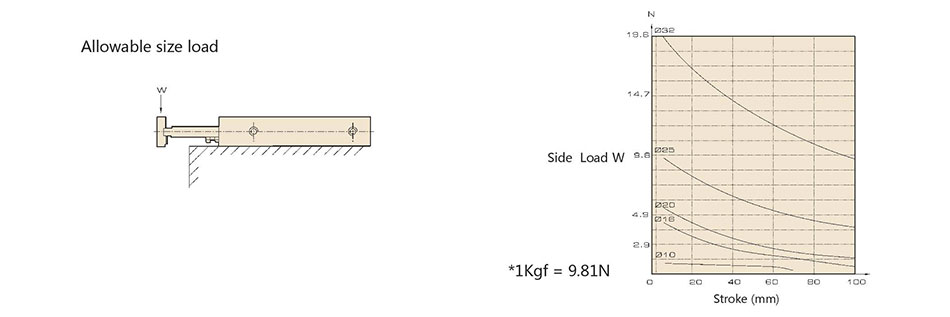

Overall Dimension
Dimension
Bore/Symbol | PA | PB | PC | PD | PE | PF | PG | PH |
10 | 18 | 0.5 | Φ6.2 deep 3.5 mm, Through Hole: Φ4.5 | 1 5.2 | 6 | 3 | 5.2 | M3 × 0.5 deep 5 mm |
16 | 24 | 1 | Φ7.8 deep 4.6 mm, Through Hole: Φ4.5 | 6.2 | 8 | 3 | 6.2 | M4 × 0.7 deep 46 mm |
20 | 28 | 1 | Φ11 deep 6.8 mm, Through Hole: Φ4.5 | 8.2 | 10 | 3 | 8.2 | M6 × 1 deep 48 mm |
25 | 34 | 1 | Φ11 deep 6.8 mm, Through Hole: Φ4.5 | 10.2 | 12 | 3 | 10.2 | M6 × 1 deep 48 mm |
32 | 42 | 2 | Φ17 deep 12 mm, Through Hole: Φ4.5 | 1 14 1 | 16 | 3 | 1 14 | M10 × 1.5 deep 14 mm |
Overall Dimension
Dimension
O-ring List
Inner Diameter Quantity | Front cover seal | Piston O-ring | Rear cover O-ring | Piston rod O-ring |
| 1 | 2 | 2 | 1 |
10 | PDU-6 | APA-10 | 10×1.5 | P12 |
16 | PDU-8 | APA-16 | 16×1.5 | P16 |
20 | PDU-10 | APA-20 | 20×1.5 | P20 |
25 | PDU-12 | APA-25 | 25×1.5 | P20 |
32 | PDU-16 | APA-32 | 32×1.5 | P25 |

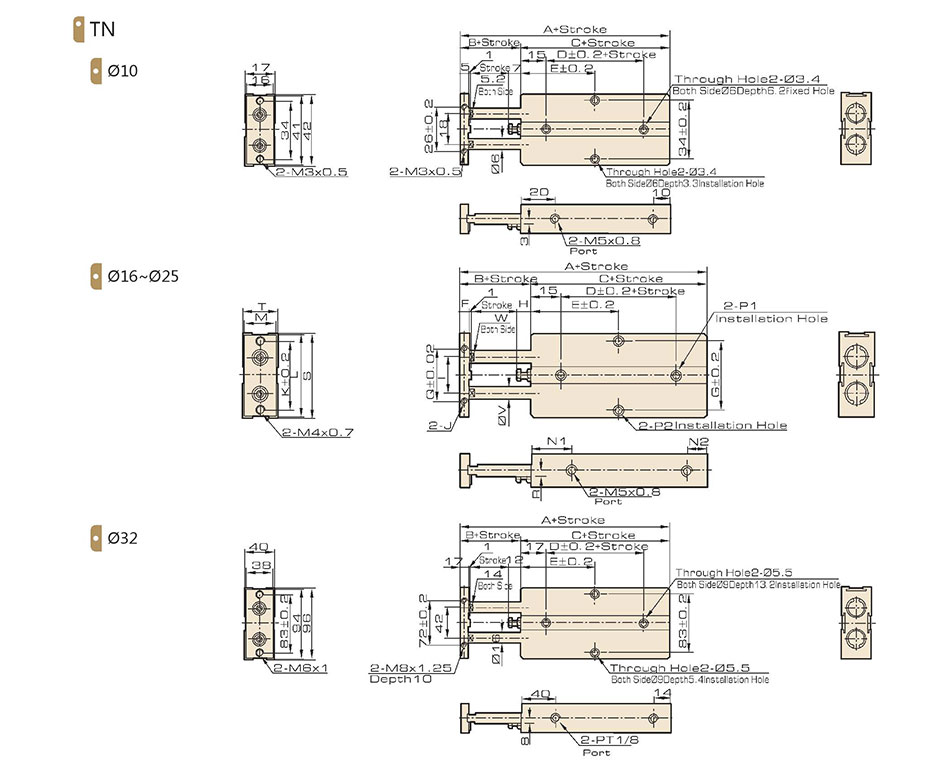

Overall Dimension
Dimension
Bore Symbol | A | B | C | D | E | F | G | H | I | |||||||||||
10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | |||||||||
16 | 68 | 15 | 53 | 20 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87 5 | 100 | 8 | 47 | 6 | 24 |
20 | 78 | 20 | 58 | 20 | 35 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87 5 | 100 | 10 | 55 | 9 | 28 |
25 | 81 | 19 | 62 | 30 | 40 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 92.5 | 105 | 10 | 66 | 8 | 34 |
Bore Symbol | J | K | L | M | N1 | N2 | P1 | P2 | Q | R | S | T | V | W |
16 | M4×0.7 deep 5 | 47 | 53 | 20 | 22 | 10 | Double side: Φ7.5 Deep: 7.2mm, Through Hole: Φ4.5 | Double side: Φ8 Deep: 4.4mm, Through Hole: Φ4.5 | 34 | 3 | 54 | 21 | 8 | 6.2 |
20 | M4×0.7 deep 5 | 55 | 61 | 24 | 25 | 12 | Double side: Φ7.5 Deep: 7.2mm, Through Hole: Φ4.5 | Double side: Φ8 Deep: 4.4mm, Through Hole: Φ4.5 | 44 | 3.5 | 62 | 25 | 10 | 8.1 |
25 | M4×0.8 deep 6 | 66 | 72 | 27 | 30 | 12 | Double side: Φ7.5 Deep: 7.2mm, Through Hole: Φ4.5 | Double side: Φ8 Deep: 4.4mm, Through Hole: Φ4.5 | 56 | 7 | 73 | 30 | 12 | 10.2 |
Bore Symbol | A | B | C | D | E | |||||||||||||||||
10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||||||||||||
10 | 63 | 12 | 51 | 10 | 30 | 30 | 35 | 40 | 45 | 50 | 55 | |||||||||||
32 | 108 | 30 | 78 | 35 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | ||||||
45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 102.5 | 115 | |||||||||||
