Ürün Parametreleri
Ürün Boyutu
Ürün Parametreleri
Internal Structure
Parts
| Number | Name | Number | Name | Number | Name |
| 1 | Cross slot pan screw | 7 | Valve spool | 13 | Coil |
| 2 | Back cover | 8 | Piston | 14 | Coil nut |
| 3 | Spring | 9 | Y ring | 15 | Fix plate |
| 4 | Anomalous seal | 10 | Spring | 16 | O ring |
| 5 | Valve body | 11 | Mannual ride spindle | 17 | Plunger |
| 6 | Flat ring | 12 | Terminal | 18 | Pilot seat |
Improvement of Flow Performance Indicator
Improvement of Life-time

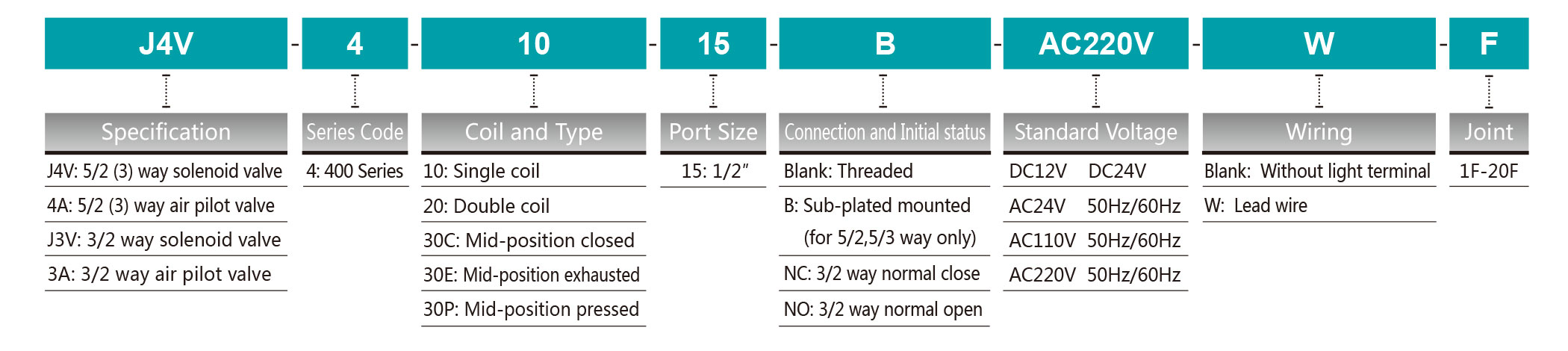

Order code：
Specification
| Model | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
| 4A410-15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A430P-15 | |
| Valve Type | 5/2 Way | 5/3 Way | |||
| Effective Cross Section Area | 50 mm²(CV=2.79) | 30 mm²(CV=1.68) | |||
| Model | 3V410-15 | 3V420-15 | 3A410-15 | 3A420-15 | |
| Valve Type | 3/2 Way | ||||
| Effective Cross Section Area | 50mm² (CV=2.79) | ||||
| Port Size | Inlet, Outlet, Exhaust Port ＝ G1/2″ | ||||
| Working Medium | 40 Micron Filtered Air | ||||
| Operation | Internal piloted | ||||
| Working-pressure | 0.15-0.8 MPa | ||||
| Max. Test Pressure | 1.2 MPa | ||||
| Ambient Temperature | -20～70℃ | ||||
| Operating Voltage Tolerance | ±10% | ||||
| Power Consumption | AC: 3.5VA DC: 3.0W | ||||
| Connector Protection | F Class, IP 65 | ||||
| Wiring / Connector | Cable / Lead Wire or DIN Connector | ||||
| Switching Frequency | 5 Cycles / Sec. | ||||
| Response Time | 0.05 Sec. | ||||
Ürün Boyutu

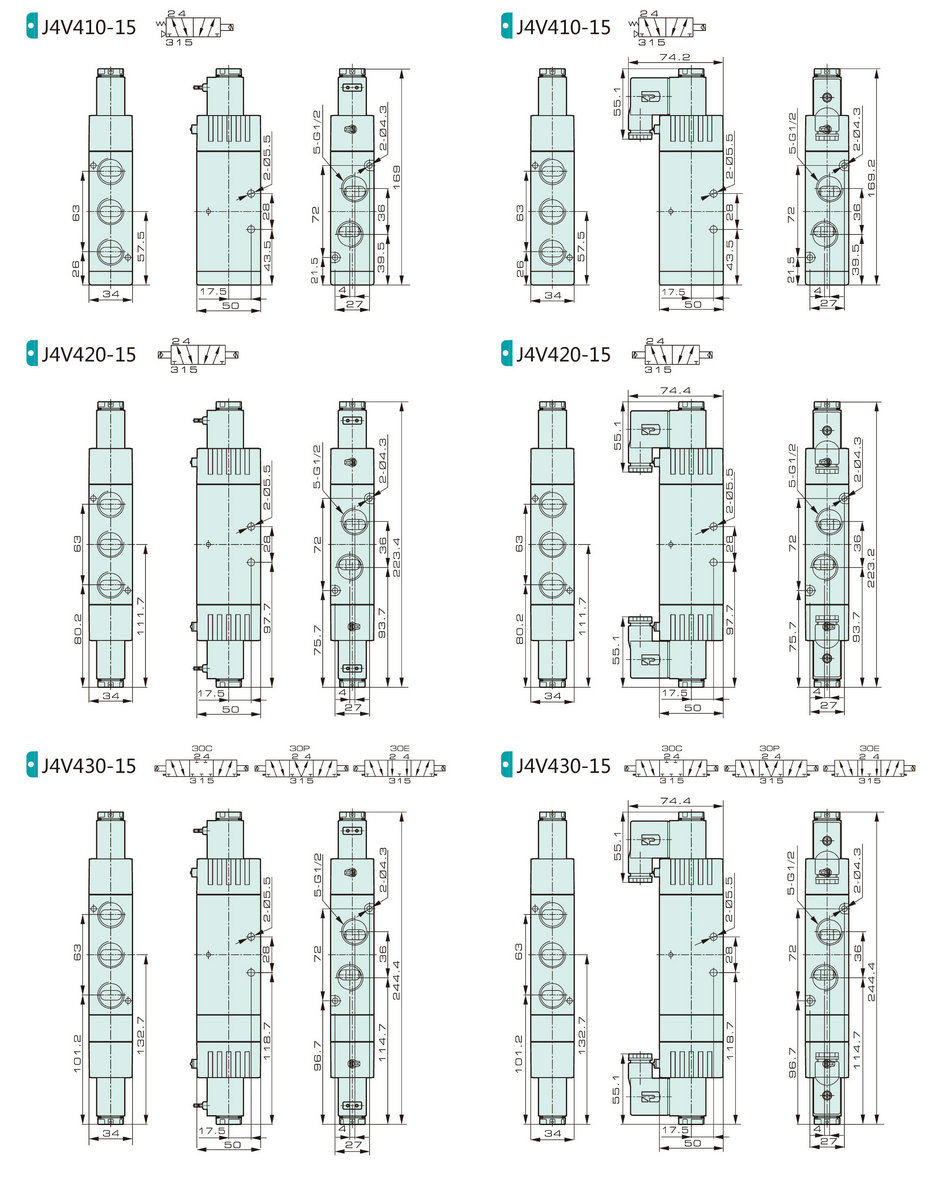

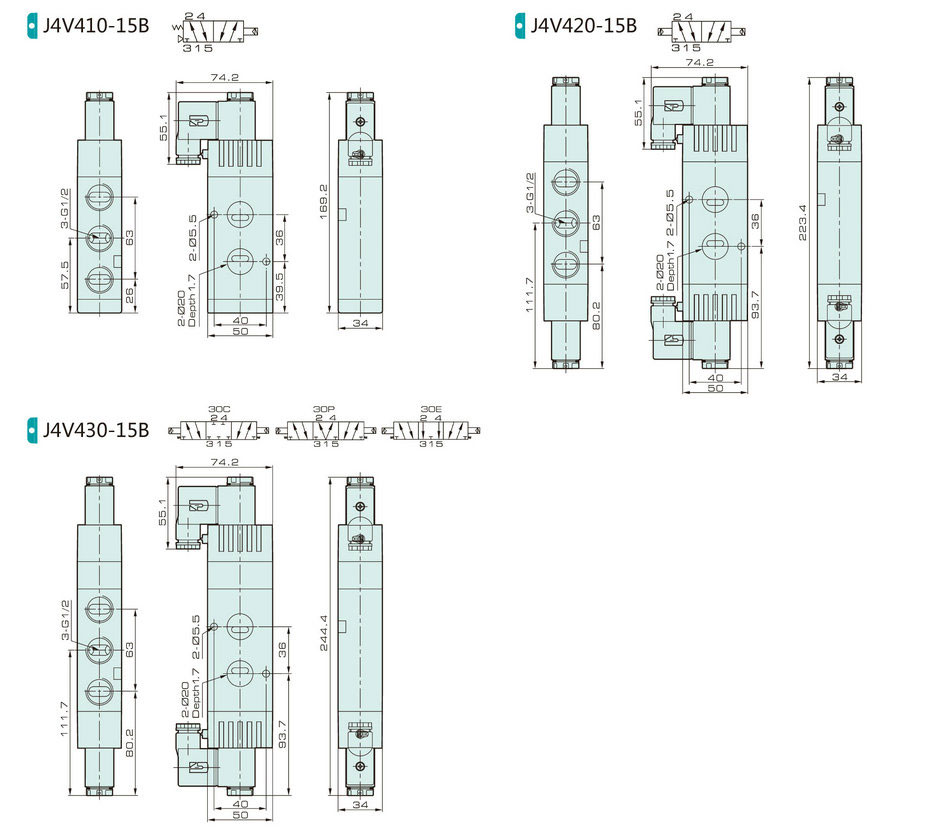

Overall Dimension:
